T-Cycle Custom Arkel Bag Mount

4 reviews
SKU: SMA319.1
$51.00

We love the Arkel bags, but the nice mounting clamps that come with them are designed for upright bike handlebars, so they extend the bag out quite a ways. When you use bags beside your seat, it's nice to have them in close, to make them easier to reach and to keep the bag within your wheel profile. These clamps bring your bag as close to the mounting tube on your SeatSide Mount as possible, so you can adjust the bag to where you really want it. A great way to make a nice bag really nice. Note that these clamps are sized for our SeatSide Mount system, which uses 7/8" (22.2mm) tubes. If you have a different system, it may use different sized tubes, so check first if you don't have one of our SeatSide Mounts.

ADDITIONAL INFO

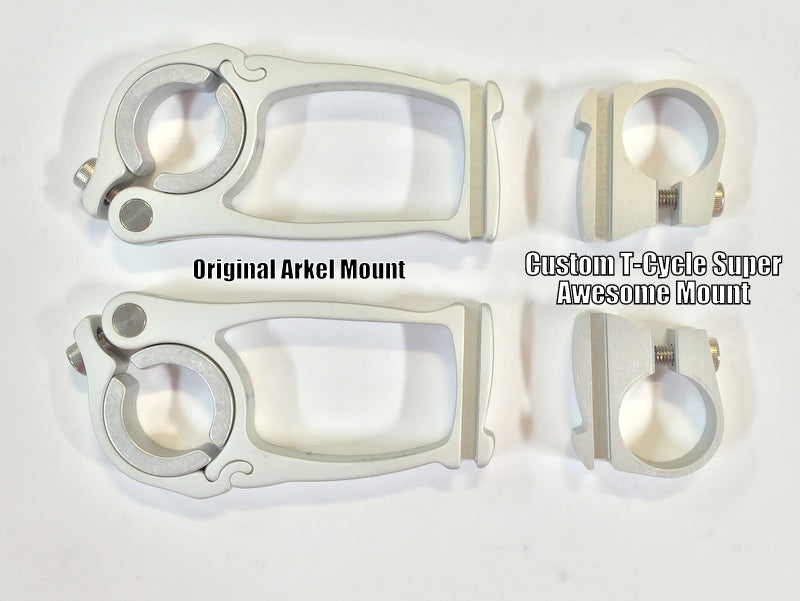

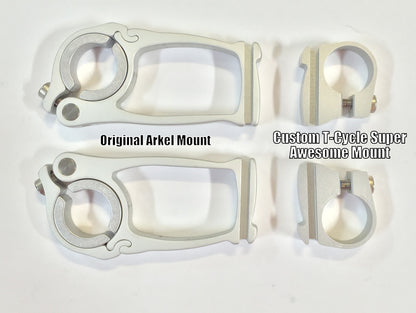

  • They replace the stock Arkel clamps, allowing you to move your bag about 2.5 inches (6cm) closer to you. This is usually enough to get the outside of the bag even with the outside of your front wheel, or even closer. Very nice for getting through narrow spaces, and for making the bag even easier to reach into while riding.

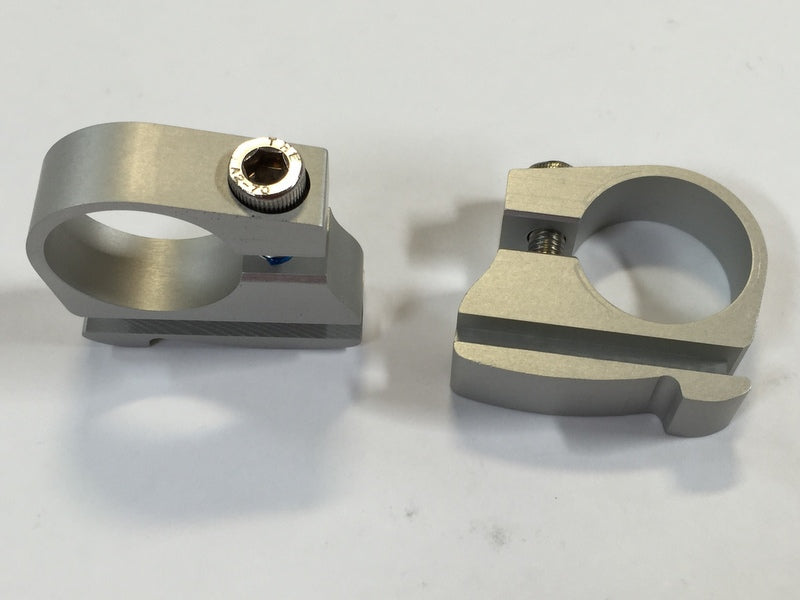

  • CNC Machined aluminum, clear anodized. Spec'd to match the stock Arkel mounting clamps, except that they are as close in as possible and mount natively to a 7/8 in (22.2mm) tube (no shims required).
  • Since they are native 7/8in clamps, this means they slip on and work perfectly with the T-Cycle SeatSide Mount system, but won't work with the ICE side of seat mount, because the ICE mount is 1 inch.
  • Anodized aluminum with stainless m5 mounting bolts. Clamps to a 7/8in (22.2mm) round tube.
  • Slide clamps on mounting tube. Clip Arkel bag onto clamps to set the correct width between the clamps. Adjust the up/down angle of the bag and tighten one of the clamps. Carefully align the second clamp to make sure it is parallel to the first clamp, then tighten it also. Check that the bag can be easily removed and reinstalled. Double check the alignment of the two clamps by sighting along the arm of the SeatSide Mount to ensure both clamps are parallel to each other. Lay something flat against the back of the clamps if you are not sure. It should be easy to remove and install the bag if the clamps are parallel and the right distance apart.
  • Fits on any mount that uses 7/8" (22.2mm) tubes.
Customer Reviews
4.8 Based on 4 Reviews
5 ★
75%
3
4 ★
25%
1
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
KK
04/26/2022
Kevin K.
Canada

Good set up

Still have not received not your fault US postal This is my second set four years of use Arkel bag has worked well just adding a second one on the set up is great excellent pairing just that one bag new one look like a rookie travler

MH
03/02/2022
Michael H.
United States United States

Perfect for a side bag mount

I purchased these to mount my Arkel bag to my T-Cycle seat side mount. They put the bag in a much better position than the original mounts. They work so well that I purchased a second set for my other recumbent.

RD
08/06/2021
Randal D.
United States United States

Great Company

Always good. And their products are outstanding. This time I ordered Arkel handle bar mounts for my trike and chain. Their favorite of mine is their TrikeTight Workstand, wonderful stand. And this is the second time they have refunded a large portion of the shipping charge because the actual charge wasn’t that much, No other company has done that for me.

CC
09/04/2020
Charles C.
United States United States

Just the right size

Purchased these for two reasons. 1st, was to allow me to swap my large Arkel handle bar bag between my DF touring bike and my 559. 2nd, to keep the bag from extending too far out. With these installed, the bag sits 1 inch beyond my front wheel. Easy install, excellent quality, T-cycle has the best Customer Service I have worked with in years. Thanks to Aaron for the great communications.
